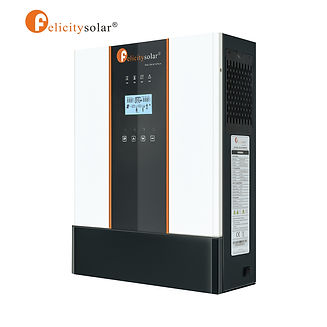

Model: IVEM3024

Rated Power: 3KVA/3KW

Nominal DC Input Voltage: 24V

Efficiency(Line Mode): 95%( Rated R Load, Battery Full Charged)

Pass Through Without Battery: Yes

Max. PV Open Circuit Voltage: 500V

PV Voltage Working Range: 120V～500V

Min. Startup Voltage: 125V

Max. Input Power: 4KW

Max. Solar Charging Current: 100A

Max. Solar Charging Current (PV+Grid): 100A

Max. Input Current: 15A

Peak Efficiency(Invert Mode): 93%

Over Load Protection(SMPS Load): 5s@≥150% Load; 10s@105%～150% Load

Surge Rating: 2 Times Rated Power for 100ms

Net Weight: 9.1KG

Gross Weight: 10.8KG

Product Size: 395*295*129mm

Package Size: 492*392*222mm

Warranty: 2 Years
